AIR CIRCULATION FAN

Shandong Honglian Air Circulation Fans are Widely used in greenhouses and enclosed houses for relaying ventilating. The cooling and ventilating efficiency are very good. Using the circulating fan can ensure the temperature, humidity and CO2 are distributed evenly in greenhouse, and promote growth and reproduction, so that to keep the consistency and obtain excellent quality of the plants.


Features:

1.Uses a direct-driven motor that provides greater efficiency by reducing energy losses.

2.Energy-efficient,high-output airflow with low noise level.

3.Strong plate and chain can make the fan in different angle

4.Low maintenance and management costs.

5.Quickly and easly install.




未标题-1_0000_未标题-1_0000_图片 1

Product Details

Advantage

1. One time stretching forming frame used high quality 304 stainless steel material , attractive appearance, never rust.
2. Fan blade made by aluminum ally material , light weight, low noise, and excellent corrosion resistance.
3. Hanging fasteners made of stainless stamping, the angle can be adjusted, easily installation.Front and back safety mesh grills ensure working safely.
4. According to the high temperature and humidity in greenhouse, individually customized high quality motor, to ensure excellent performance.
5. International advanced power-saving technology and automatically heat protected system makes the circulation fan having the advantage of low energy consumption and long service life.

MODELPOWER(W)VOLTAGE(V)AIR  FLOW(M³/H)BLADE SPEEDFREQUENCYSIZE(MM)
400 120 220/3803200 1400 R/MIN50 HZ460*460*310
500 180 220/3805400 1400 R/MIN50 HZ560*560*380
600 1100 220/3809500 1400 R/MIN50 HZ660*660*380


  • Honglian air circulation fan frame

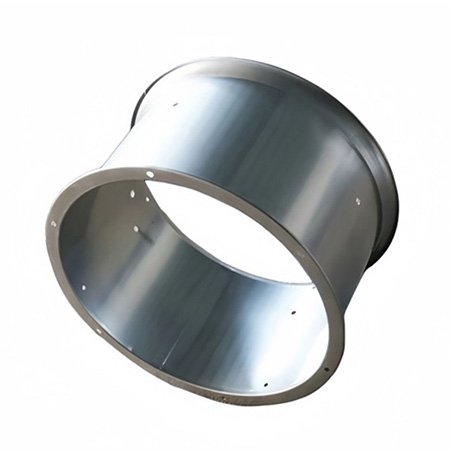

    Honglian air circulation fan frame

    The frame use high quality 304 stainless steel material by stretching forming, thickness 1.0-1.2mm very strong. Attractive appearance, no rusty.

  • Honglian air circulation fan safety net

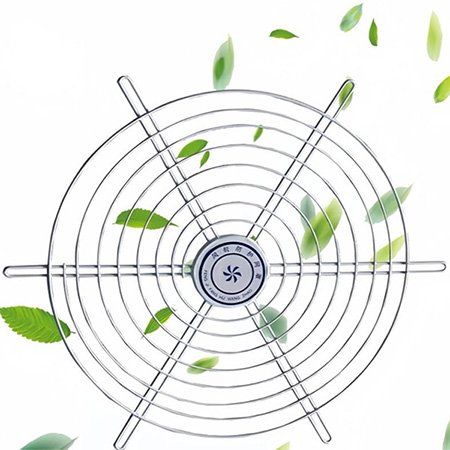

    Honglian air circulation fan safety net

    The both side protective safety net is made by hot-dip galvanized wire with electrostatic plastic spraying. Not easy to get rust,beautiful and durable. Protect the fan working well.

  • The fixed plate

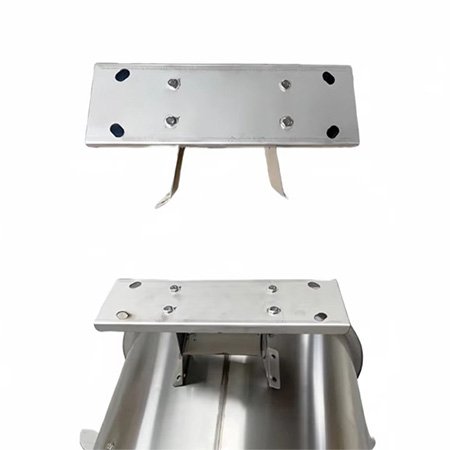

    The fixed plate

    The fixed plate are one of the install parts, which can fixed on the steel structure, the angle can be adjust as your request, very easy install.

  • The hanging chain

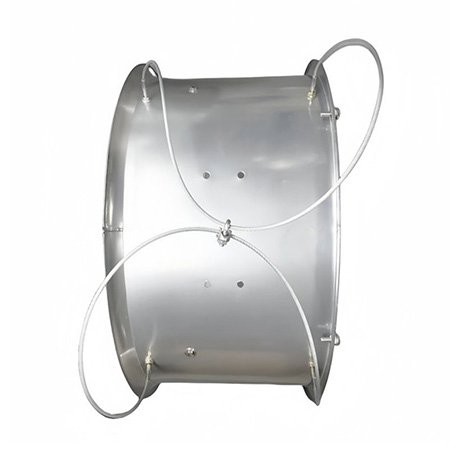

    The hanging chain

    The hanging chain are the secone install method, they can be hanging as you want and adjust the angle by change the chian angle. easy install.

  • The blade of the air circulation fan

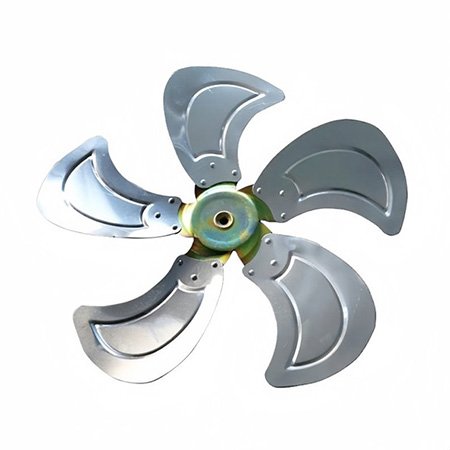

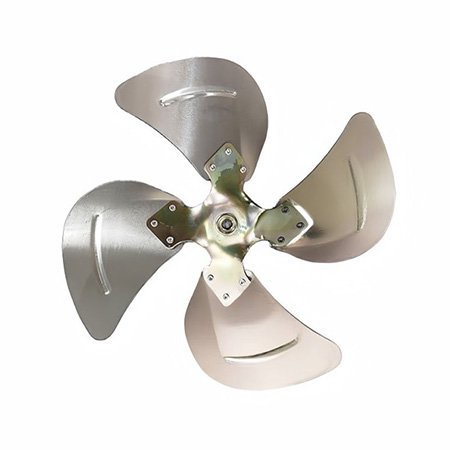

    The blade of the air circulation fan

    The blade made by aluminum material , weight light, Beautiful appearance, low noise. Resonable blades angle, large air. Different model of the air circulation fan have different number of the blade ,reasonable design make the air circulation fan have elegante appearance.

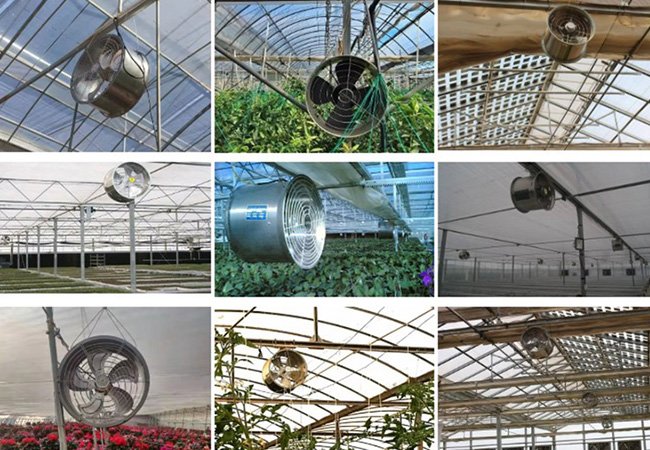

CASE DISPLAY

Shandong Honglian air circulation fan has a wide range of uses, such as planting, breeding, factories,vegetable plastic greenhouse, flower greenhouse etc., which can realize ventilation and reduce the harm caused by poor air circulation. It is more suitable for air circulation, cooling and ventilation in greenhouse.

未标题-4_0000_未标题-2_0000_图片 10
