Hanging Tpye Fan

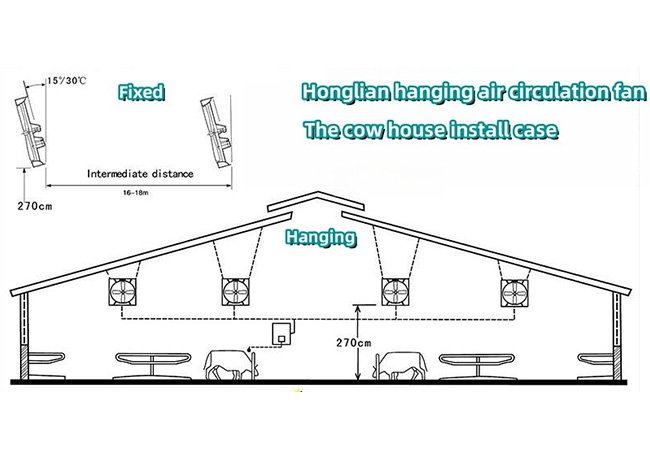

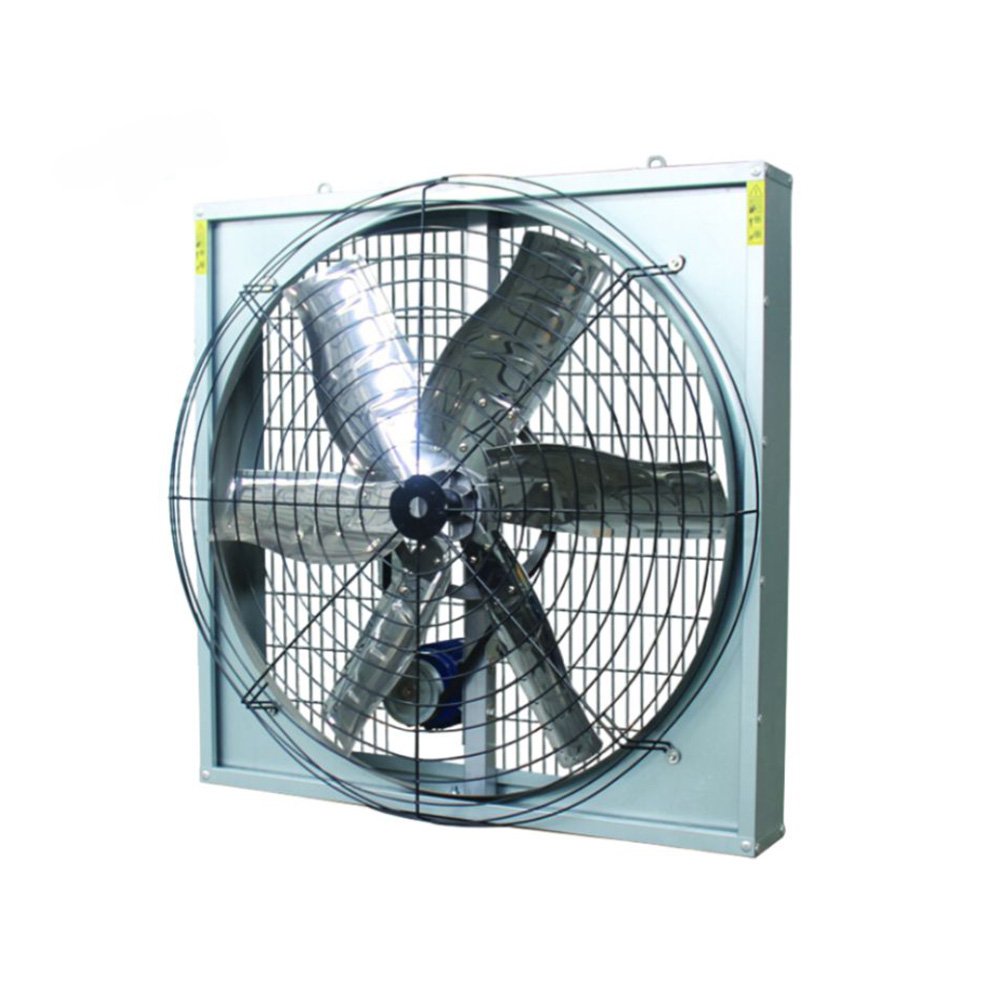

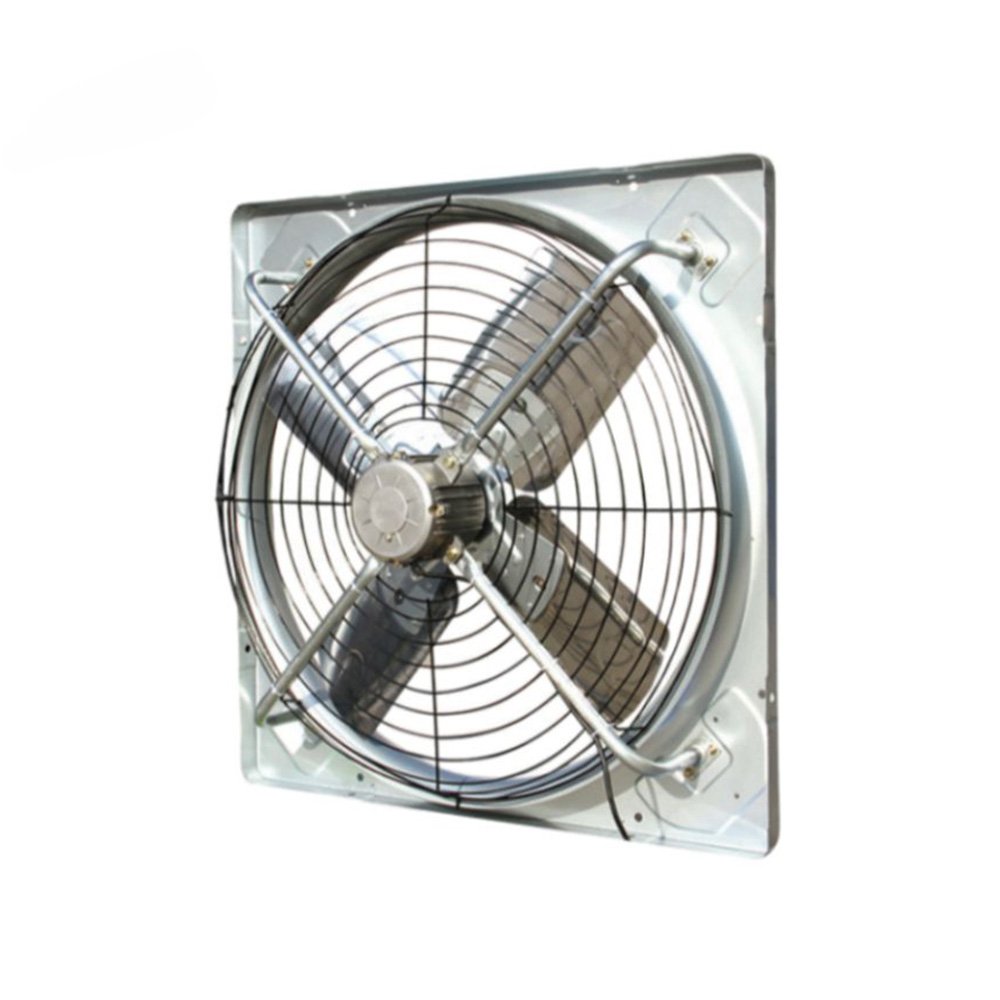

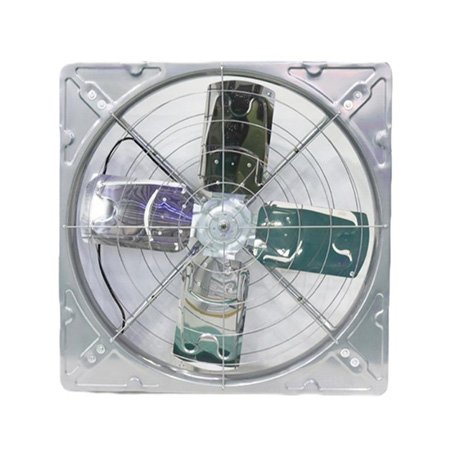

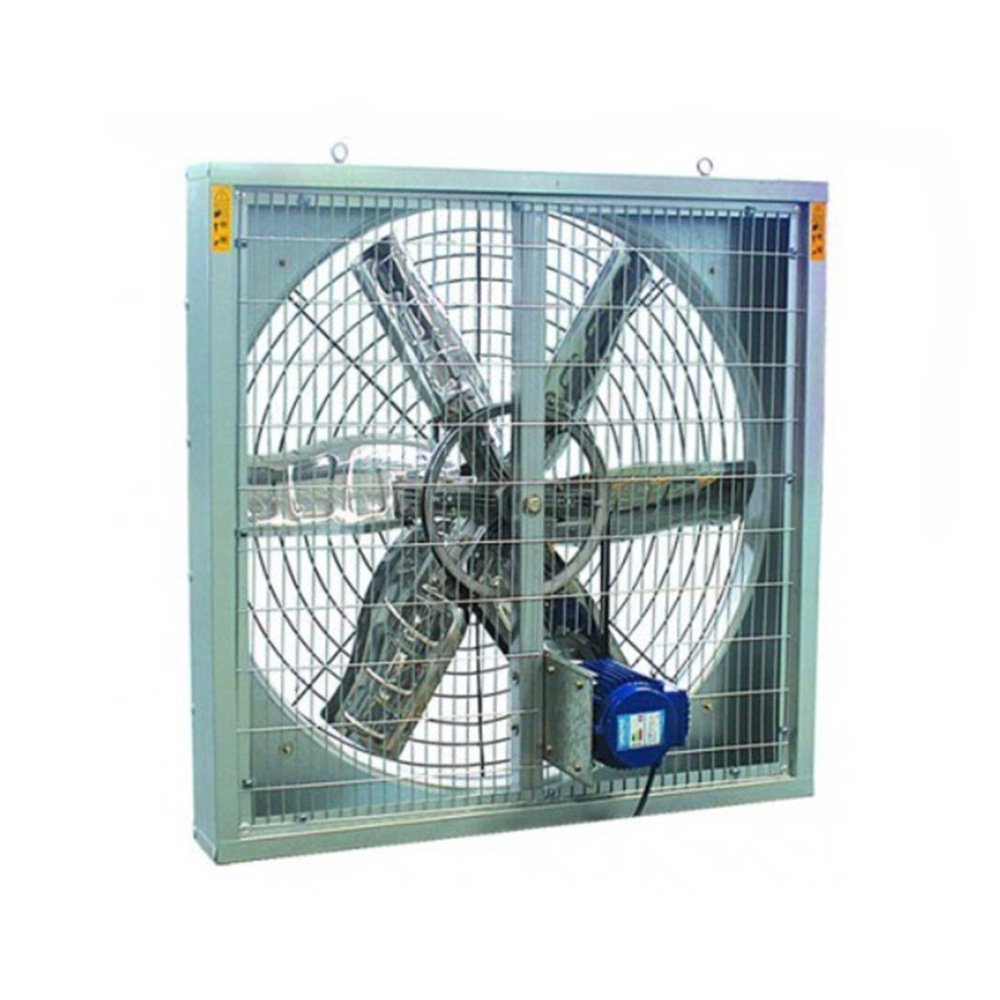

The hanging type fan sometimes be called cow house fan because of cow farm used big quantity, it is widely used in cow houses to reduce their temperature and keep them well ventilated. it can also used in factory , greenhouse etc,. This hanging type fan have belt drive and direct drive, 4 fan blades and 6 fan blades, galvanized frame and plastic frame for available.
Product Details
Main Feature:
1) Fan blades are made of mirror stainless steel by punch forming. reasonable fan blade angle design, large air volume and anti-rust.

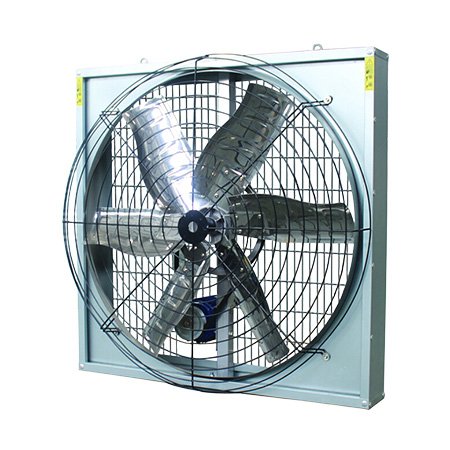

2) Fan galvanized frame with zinc-coated 275g/sqm, still have high quality plastic frame can be choose, anti-rust and durable. Fan frame with hanging rings, convenient for installation and angle adjustment.
3) The blade through professional intelligent dynamic-balance test ensures the smooth operation of the product, lower vibration, less noise, increase stability and service life.
4) 100% pure copper wire, high efficiency and energy saving. Motor Protection Grade: IP55 Insulation Class: F grade. Motor voltage and frequency can be customized. Both Chinese famous motor and Siemens motor are available or as requst customized motor for choice.
| Model | Blade Diameter MM | Blade RPM | Motor RPM r/min | Air Flow (m³/hr) | Input Power | Dimensions |
| HL(b6)-900 | 750 | 630 | 1400 | 28000 | 370w | 900*900*400+mm |
| HL(b6)-1000 | 900 | 610 | 1400 | 30000 | 750 w | 1000*1000*400+mm |
| HL(b6)-1100 | 1000 | 600 | 1400 | 32500 | 750w | 1100*1100*400+mm |
| HL(b6)-1220 | 1100 | 460 | 1400 | 38000 | 750w | 1220*1220*400+mm |
| HL(b6)-1380 | 1270 | 439 | 1400 | 44000 | 1100 w | 1380*1380*400+mm |
| HL(b6)-1530 | 1400 | 325 | 1400 | 55800 | 1500 w | 1530*1530*400+mm |
| Model | Blade diameter mm | Voltage V | Frequency HZ | Power W | Air volume m3/h | Speed r/min | Dimension mm |
| HL(d4)- 1000 | 1000 | 380 | 50/60 | 400 | 19800 | 550 | 1120*1120*320 |

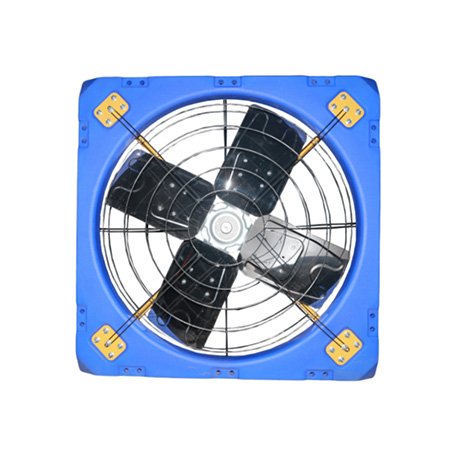

The PP frame hanging typ fan adopt strong plastic material double hollow frame , anti-corrosion, never rust, securely , no swing, no deformation and beautiful and utilitarian. Equipped with installation hole and four rings to satisfy all installation method. The wind can arrived 16-25 mteres. The fans
We has advanced production technology with automatic equipment. professional production line, NC-based professional equipment.Autopunching and bending. Highly-accurated. Materials is made by 280g coating weight galvanized sheet.
Advantage:High strength,Strong corrosion resistance

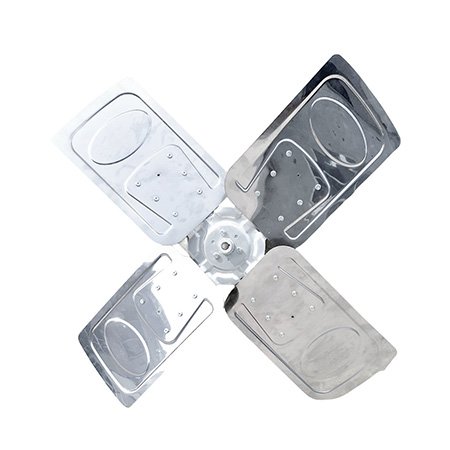

The material of the blade is 430 Krupp stainless steel by punch forming. Large air flow, no deformation, no fracture, no dust, anti-rust, anti-corrossion ,attractive and durable.Fan blades are adjusted by intelligent dynamic-balance tester,ensure the fan smooth running, increase stability and service life.

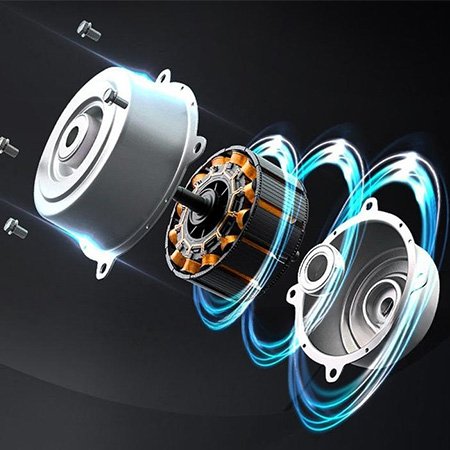

Honglian motor are used 100% pure copper wire motor , high efficiency and energy saving .Motor Protection Grade: IP55 Insulation Class: F grade. Motor voltage and frequency can be customized. Both Chinese famous motor and Siemens motor are available.
This hanging fan designed both side mesh which made by galvanized and cover plastic material anti-rust and ant-corrosion. The mesh product people or other things get harm by working fan's blade.
