Axial Type Air Cooler

HL-A Serise

Honglian air coolers not only provide fresh cooled air for industry workshop, shopping mall, super market and other public area but also have one important features: energy-conserving and environment friendly. This air coolers have no compressor, no copper pipe, the core parts----evaporative cooling pad and motor, which can make the clients power saving.It have two beautiful name: Desert air conditioner and Marsh air conditioner.


未标题-1_0000_图片 1

Product Details

ModelWater tank
L
Air flow
m³/h
Discharge Size
mm
Power
W
Lenght
mm
Width
mm
Hight
mm
HL-1.1KW25 18000 670×6701100 1100 1100 950
HL-1.5KW25 20000 670×6701500 1100 1100 950
HL-2.2KW25 25000 670×6702200 1100 1100 1150
HL-3KW45 30000 800×8003000 1280 1280 1250


Details

Industrial wet curtain cooling fan, evaporative environmentally friendly air conditioning workshop ventilation air cooler. Used water and air flow cooling air.

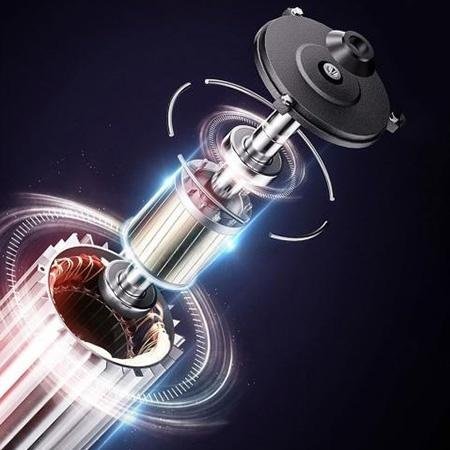

  • Motor
    Motor

    Fully cooper motor, low noise and durable leakage protection, high current grounding wire, waterproof .

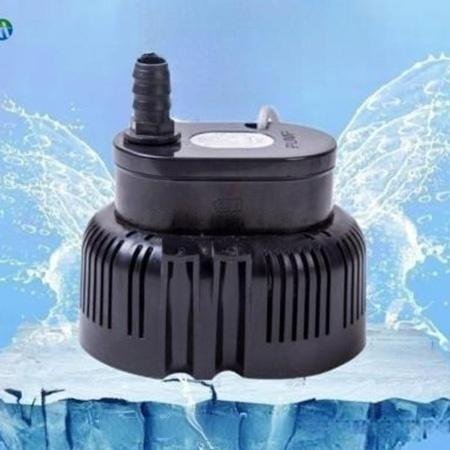

  • Pump
    Pump

    Double filtration water pump, which filter the impurities very good for smoother water flow.

  • Louver
    Louver

    Manual type and automatic supplied.
    Automatically louver, when the air cooler working the louver or we called shutter working automatically.

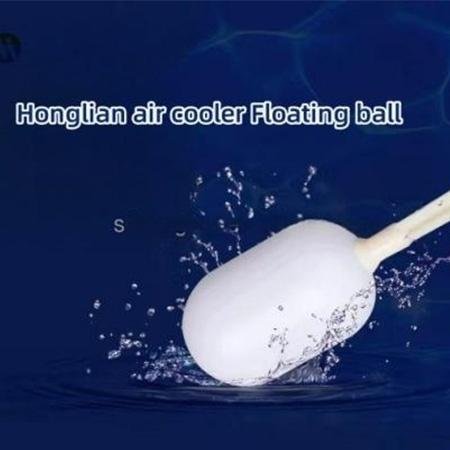

  • Floating Ball
    Floating Ball

    The floating ball can adjust the water volume.Which anti-aging and thickened body, durable.

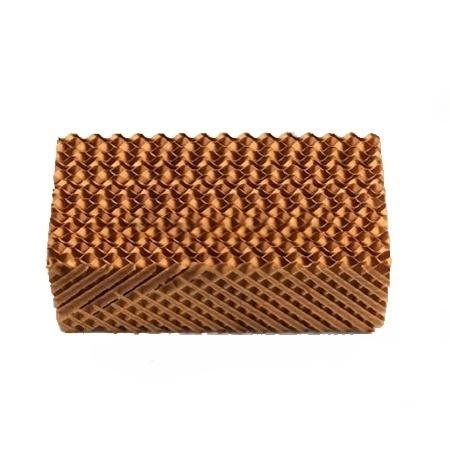

  • Cooling Pad
    Cooling Pad

    The honglian brand air cooler all used best quality cooling pad, our normall cooling pad used in air cooler are 5090 type cooling pad, which have good strength and high hydroscopicity, durable.

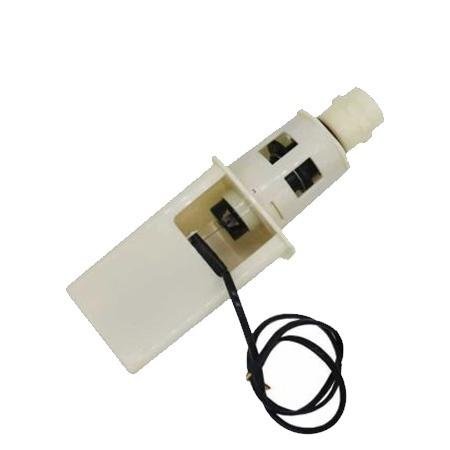

  • Water Outlet
    Water Outlet

    Outlet device make the water outflow from tank automatically, which can make the tank water keep clean and ensure the air always fresh. Also have the water pump can be choice.

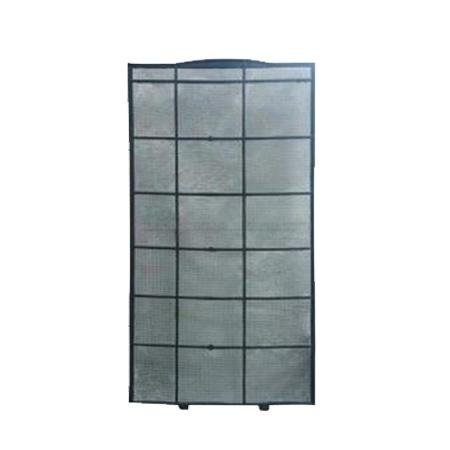

  • Dustproof Net /Dust Filter Grill
    Dustproof Net /Dust Filter Grill

    Prevent dust and impurities in the air from being sucked into the machine,Filter the dust in the air.

  • Blade
    Blade

    A variety of fan blade are available, low noise, high air volume,stable operation.Full plastic and with iron blades are supplied.
    Blade quantity:three for 1.1/1.5kw, four for 2.2/3/4kw

  • Air Grill
    Air Grill

    Which cooper with air duct working. It can help the cooling air transport to any place you want. have bottom air grill and side air grill supplied.

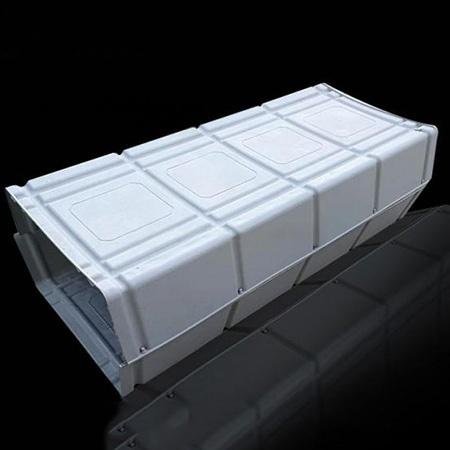

  • Air Duct/ Elbow
    Air Duct/ Elbow

    The air duct can transfer the cooling air to long-distance, it can be choose the best length for you , cooperate with air girll , any place can have cooling fresh air, make the air cooler have best cooling effect

  • Controllers
    Controllers

    Integrated controller or split type controller all can control the air cooler automatic , when water shortage the controller will give alarms.

  • Drain Valve
    Drain Valve

    Adopt the new drain valve which not easy broken and it can make all wast water clean up to keep the air cooler bring fresh air.

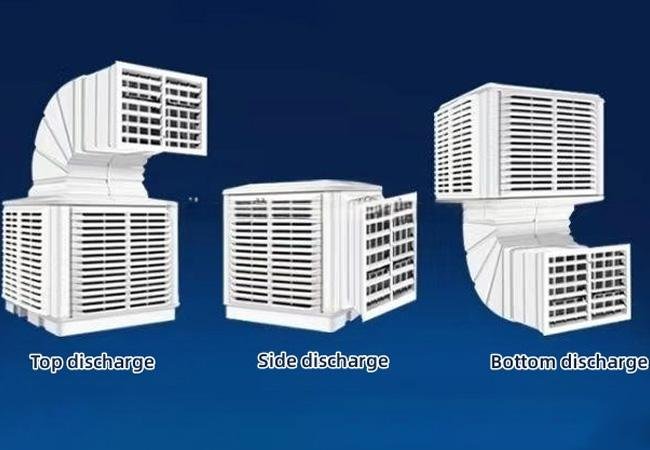

The air cooler three type discharge

未标题-6_0002_图层 2

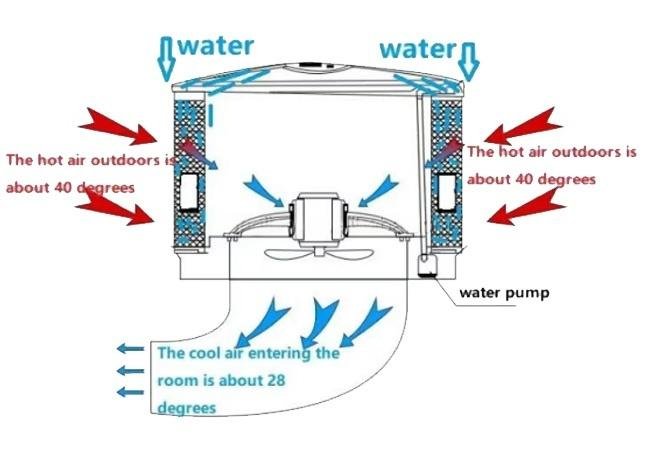

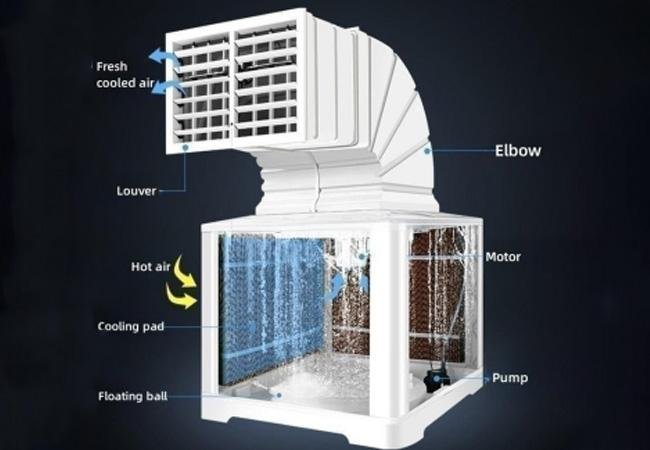

Air cooler working principle



Case

The air coolers can be used in industrial workshop, wearhouse, supmarket, factory , poultry farm, restaurant, greenhouse etc. any place where need reduce temperature and fresh air.
