Product Category
HL-C Serise
Function:
1) Exhausting turbid, humid hot air to exterior and supplying fresh air to interior.
2) Produce air convection as a heat radiator, reducing indoor temperature, increasing air fresh.
3) Reduce air conditioning load, increasing the cooling effect
Product Details
Advantages
1, Automatically running. wind drive. One time investment, No maintenance or operating costs,
2. No electricity consumption, environmental protection, energy-saving.
3. Improves air quality, long life working, Water and dust proof.
4. Light weight, strong and durable construction.
5. The structure of the high quality, high revolving sensitivity and high air venting efficiency.
6. Easy installation:.installation position: flat roof, pitched roof, concrete roof and contour plate of
various industrial plants.
7, Applicability widely. All kinds of industrial factory building contour plate light steel structure roofing, concrete roof can also be installed. And there's no need to support, installation is convenient. roof air ventilator.

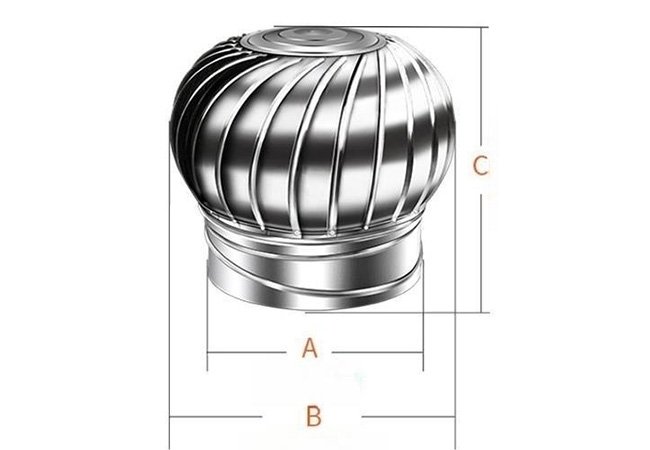

The following are the common size just for reference, more request details please contact us.
| Model No. | C | B | A | VANES | MATERIAL |
| 300mm | 350mm | 400mm | 300mm | 24 | SS/COLOR SHEET |
| 400mm | 380mm | 480mm | 400mm | 26 | SS/COLOR SHEET |
| 500mm | 480mm | 600mm | 500mm | 32 | SS/COLOR SHEET |
| 600mm | 580mm | 700mm | 600mm | 32 | SS/COLOR SHEET |
| 680mm | 600mm | 800mm | 680mm | 32 | SS/COLOR SHEET |
| 800mm | 650mm | 900mm | 800mm | 42 | SS/COLOR SHEET |
| 880mm | 700mm | 1000mm | 880mm | 42 | SS/COLOR SHEET |
Except the above size we accept customized size and special request.We have design people to meet your demand.
The no power roof fan use natural wind-driven or air convention of indoors temperature difference to push the turbine run, exhausted the not fresh air by centrifugal force and negative pressure.

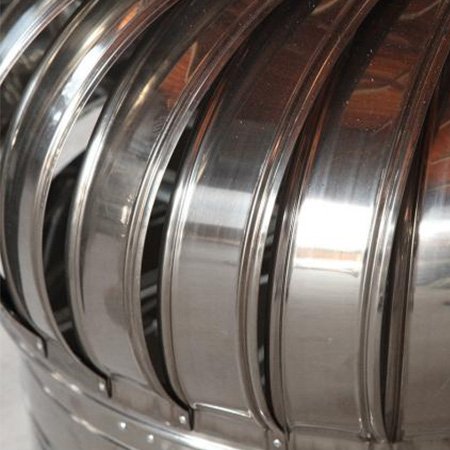

Curved blades are the beat results of scientific caculation and it can strickly ensure that no rainwater intrution.
The coating plastic material no power turbine roof ventilator , adopt the color sheet or stainless steel sheet as the row material which can make different color as clients request. All color can be make if you want, just reach the quantity. The color also can be mix together as you want.

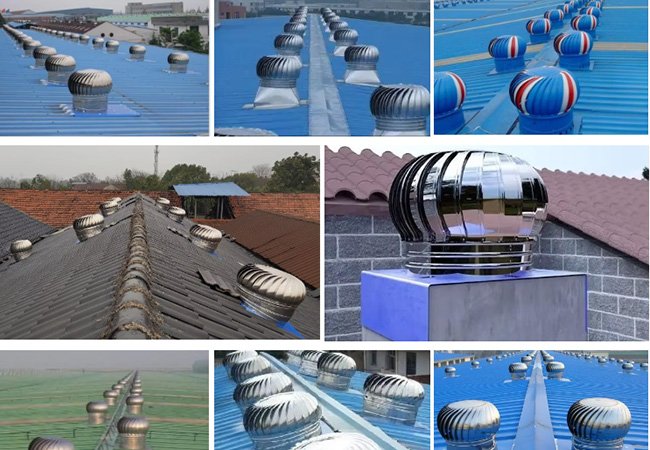

The roof turbine fan have Widely used in these places Hotels, Garment Shops, Building Material Shops,Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops,Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company and so on.
