Push Pull Fan Type 1530 | Industrial Ventilation Equipment

Product Category

large poultry house ventilation exhaust fan

Push Pull Type Fan

Tpye 1530

The Big High Speed Push Pull Industrial Ventilation Box Fan Type Greenhouse Poultry Farm Exhaust Fan has special push-pull shutter mechanism, it can open and close shutter automatically. The stainless steel blade uses a stamping molding process,possessing beautiful,durable, avoiding being deformed and cracked, working smoothly, reducing the noise and effectively improving the service life. Unique concave handling design of push pull exhaust fan not only helps avoid inconvenience occurred in the transport, but also keep favorable installation and beautiful exterior.

Inquiry Now

Product Details
Inquiry Now
Related Products

Product Details

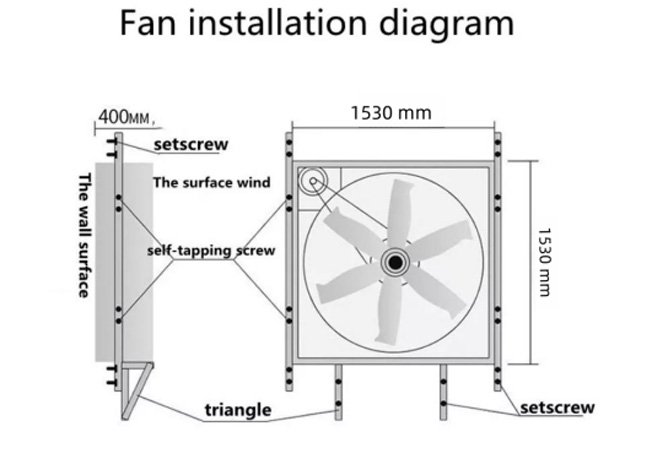

1. Adjust the horizontal and vertical , keeping the fan blade running smoothly.2. After fixing the fan, the remaining gap need to be sealed.3. The Expansion screws and Self tapping screw can be used to fix.

Main Features：
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring the fans quality.
3) Complete CNC production line, the accuracy of assembling holes is 100%, quality assured.
4) Wall-Mounting fan , easy installation and maintenance.
5) Belt Drive, Big airflow.

model	Balde Diameter	Voltage	Input Power	motor rotational speed	Air Flow	Noise	Hight	Width	Thickness
	mm	V	kw	rpm	m³/h	db	mm	mm	mm
800	700	380/220	0.37	1400	20000	≤64	800	800	450
1000	900	380/220	0.75	1400	30000	≤64	1000	1000	450
1100	1000	380/220	0.75	1400	33000	≤64	1100	1100	450
1220	1100	380/220	1.1	1400	38000	≤64	1220	1220	450
1380	1270	380/220	1.1	1400	40000	≤64	1380	1380	450
1530	1400	380/220	1.5	1400	49000	≤64	1530	1530	450

Fan Blades

Material:Krupp 430 stainless steel, thinckness 1.2mm. One times punching formed attractive and durable.
The blade advantage:Have big air flow, no deformation,no fracture, no dust.Note: Blade material also have galavanized ,304 stainless steel, aluminum alloy for option.

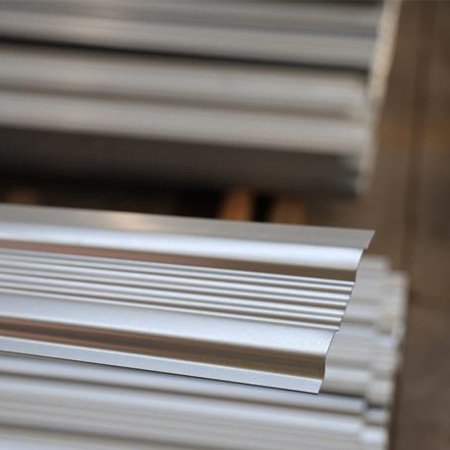

Shutters

Material: hot-dip galvanized sheet, the thickness of zinc is 275g/㎡.The shutters thickness about 0.45mm per pcs, it been stamped in same stylest. It can open and closed automatically.
Belt Pulley

The belt pulley are made of High strength aluminum-magnesium alloy by die-casting which reduce the weight of propeller, high
corrosion resistance, stable operation, no shaking.
Opening system-Centrifugal System

1.Material: High quality Nylon.
2.Guide Rod:304 stainless steel with special material outside, high strength, no rust.
3.Rivet: 304 stainless steel,wear-resisting, no rust. It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.
Bearing

Honglian exhaust fans bearing adopt imported double-row bearing which have special waterproof design, high strength, low noise, free maintenance and long service life.
Belt

Sanlux belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair Modified B type belt,so that service life increase 3times than Type A
Motor

1. Brand: Chinese famous motor；Siemens motor, ABB motor and WEG motor
2.Motor Protection Grade: IP55
3. Isulation Class: F grade Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack
protection device which would power off when shortage of electricity.

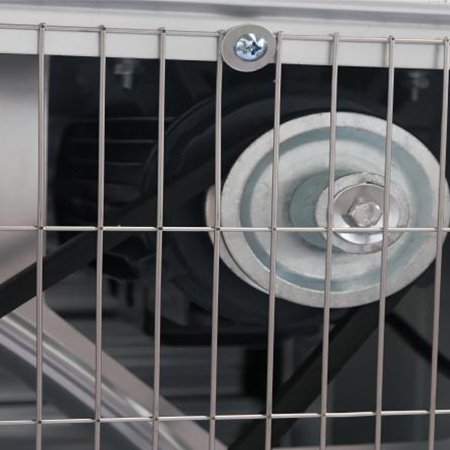

Safety Net

The fan protective safety net is made by hot-dip galvanized wire with electrostatic plastic spraying. Not easy to get rust,beautiful and durable.

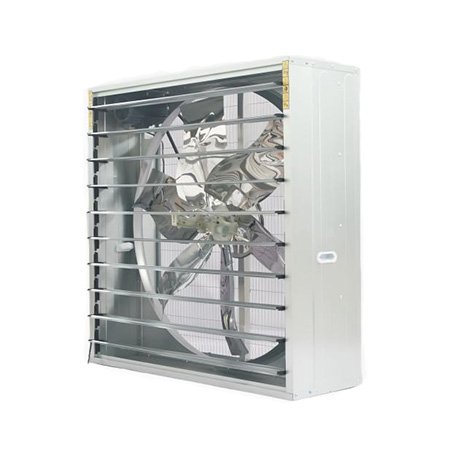

Plastic Handle

In order to facilitate transport, a concave plastic handle is designed on both sides of fan fuselage, it is greatly improve the
transportation efficiency. It has beautiful appearance and it is reasonable for design and not easy to damage, cannot hurt hands.

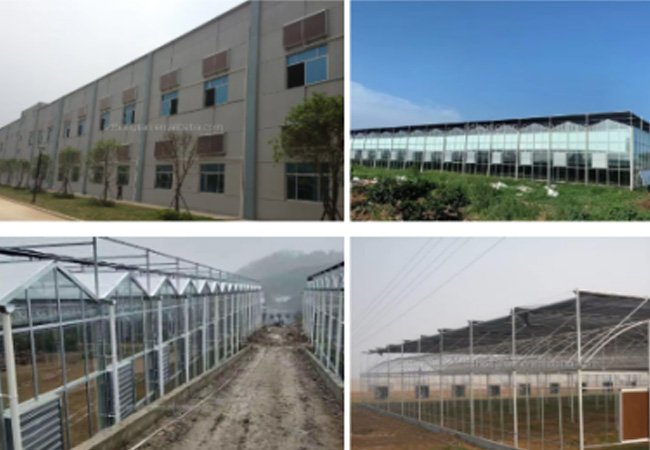

CASE DISPLAY

The exhaust fan are widely used in Poultry house, Industrial workshop, Agriculture etc., Anywhere need natural ventilation this fan is the good choice.

PRODUCT PACKING
