Product Category
Small Fan

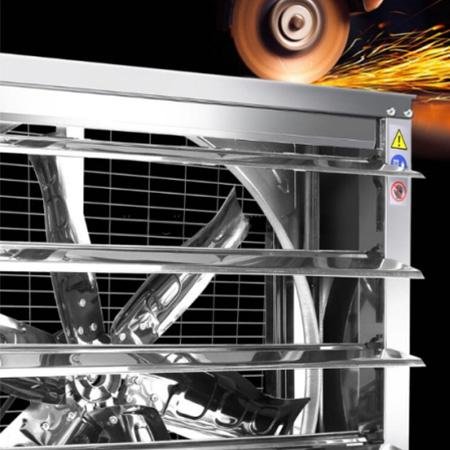

The frame adopt 275g/㎡ galvanized steel plate, balde are made of 1.2 thinckness stainless steel plate,used one times punch forming technology. The fan's shutter can open and colosed automatically. This fan have high air flow and long service life, it can always make you have fresh air.
We have all kinds of size fan and accept customized size. If you have special request we can do it.
Product Details
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly.2. After fixing the fan, the remaining gap need to be sealed.3. The Expansion screws and Self tapping screw can be used to fix.
Model | Size MM | POWER W | Voltage | Air flow M³/h | Noise db | usable area M³ |
300 | 300*300*200 | 60 | 220v | 1500 | ≤50 | 5-15 |
400 | 400*400*320 | 180 | 220v/380v | 2500 | ≤60 | 20-40 |
500 | 500*500*320 | 180 | 220v/380v | 5000 | ≤68 | 35-55 |
600 | 600*600*370 | 370 | 220v/380v | 8000 | ≤68 | 50-65 |
700 | 700*700*370 | 370 | 220v/380v | 10000 | ≤70 | 70-80 |
The exhaust fan Materials is made by 275g coating weight galvanized steel plate.
Advantage:High strength,Strong corrosion resistance.

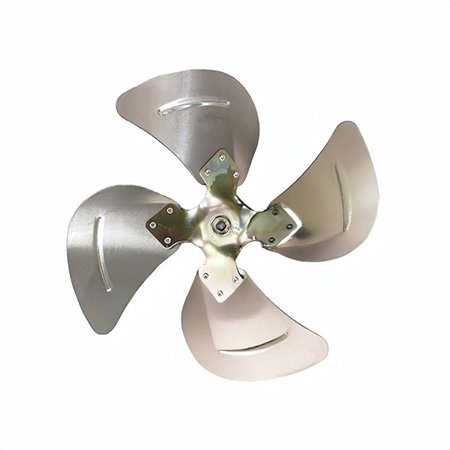

Material:aluminum alloy material. One times punching formed attractive and durable.
All small fan adopt direct connect with motor.

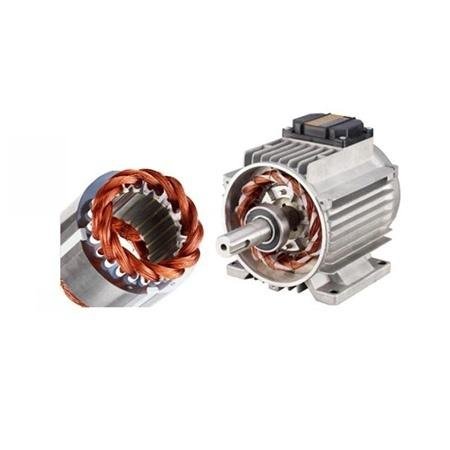

We all used good quality motor ,the common motor are chinese famous motor.Siemens motor, ABB motor and WEG motor by required. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.

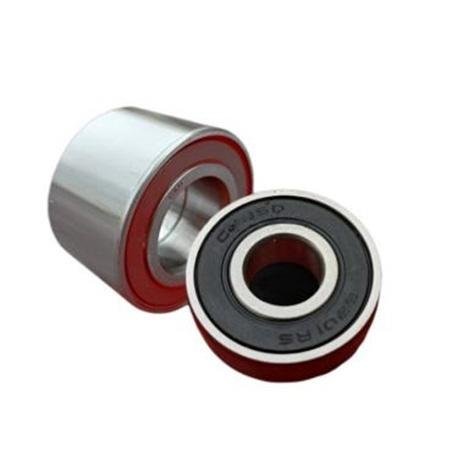

We are used import good quality famous brand bearing, which have high strength ,low noise ,maintenance free and dustproof and waterproof, have long service life.

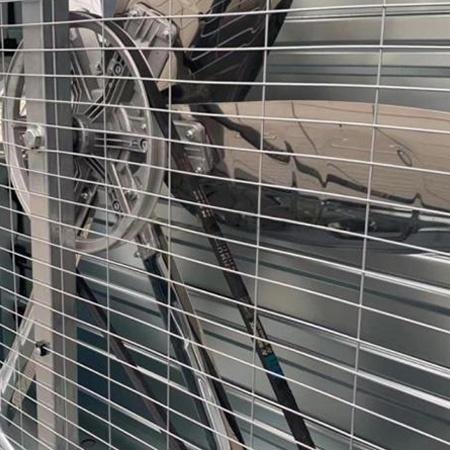

The fan protective safety net is made by hot-dip galvanized wire with electrostatic plastic spraying. Not easy to get rust,beautiful and durable.

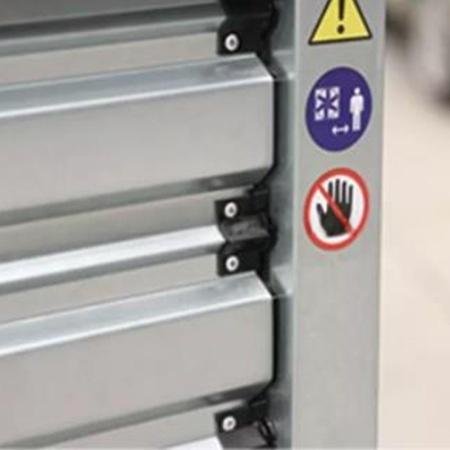

The shutters thickness about 0.45mm per pcs, it been stamped in same stylest. It can open and closed automatically.

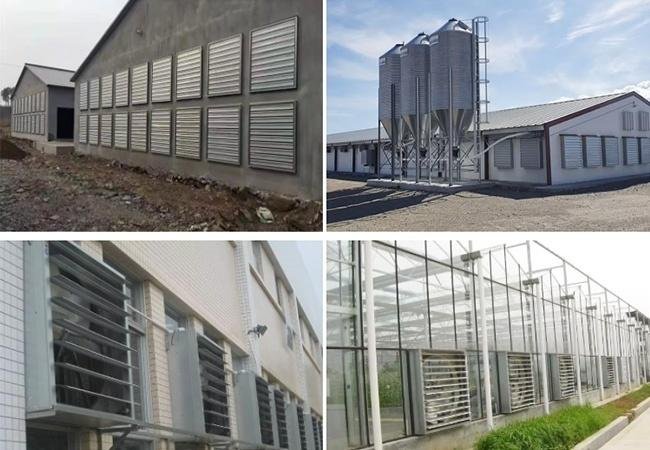

Our exhaust fan have sale to many of countrys , it have widely used in poultry house, industry workshop and agriculture.They can be used in chicken house, bird house, cow house etc.,greenhouse also need this fan to control temperature.
