Introduction

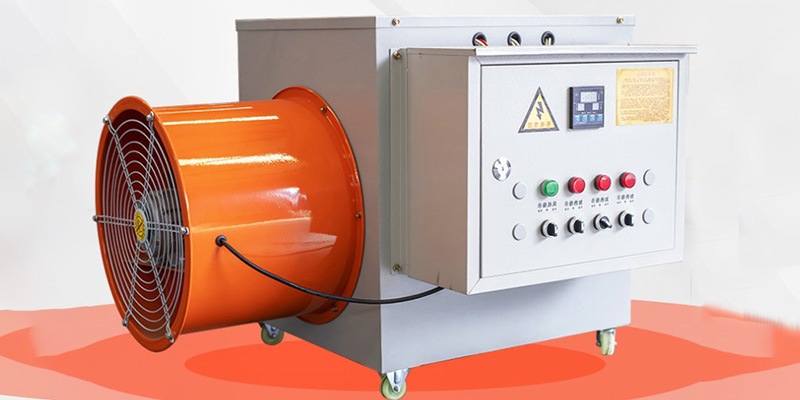

The automatic electric heating fan adopt Dual-sensor intelligent temperature control system,which have power saving, high efficient, quickly increase temperature, long heat preservation time etc. Characteristic.High degree of automation,High heat utilization rate, compared with other heating fan have an incomparable superiority,It is a new generation product suitable for the current agricultural and livestock industries.

The main unit integrates heating, air outlet and temperature control functions into one complete machine. Used electric power,It has the advantages of compact structure, good appearance, safe use, energy saving and cleanliness.

The following are the common model, we can customized special request product , if you have any request just contact us.


未标题-1_0000_图片 1

Product Details

The following are the common model, we can customized special request product , if you have any request just contact us.


Model

voltage

power

Heating area

Connect power

cable copper

Size

MM

Body Material

5kw

380v/220v

90w

20-60

4/6 m²

660*570*450

SS/spraying plastics

10kw

380v/220v

150w

50-100

6/10 m²

750*640*500

SS/spraying plastics

15kw

380v/220v

150w

60-150

6/10 m²

750*640*500

SS/spraying plastics

20kw

380v

370w

100-200

10 m²

790*690*600

SS/spraying plastics

30kw

380v

550w

180-350

16 m²

900*780*610

SS/spraying plastics

40kw

380v

1.5kw

200-400

16 m²

1160*780*630

SS/spraying plastics

50kw

380v

1.5kw

300-500

25m²

1160*780*630

SS/spraying plastics

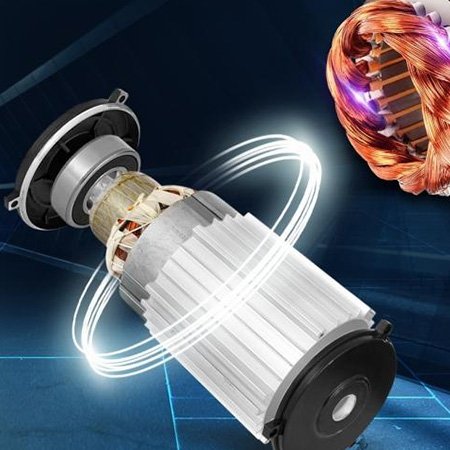

  • Full Copper Motor
    Full Copper Motor

    Fully enclosed design prevents oil and dust from entering, reduces noise and enhances work efficiency.

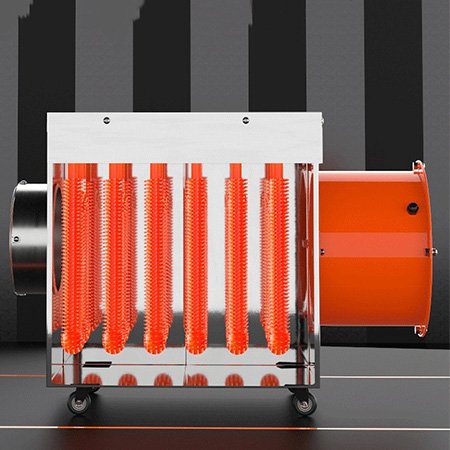

  • Power-on Preheating ,Delayed Air Supply.
    Power-on Preheating ,Delayed Air Supply.

    When power-on the temperature arrived set up the warm air start supply, avoid the cold air supply when power-on. When the temperature arrived high set up temperature , the heating tube stop working but the fan still working , after send out the hot air the fan stop working, power saving and safety use.

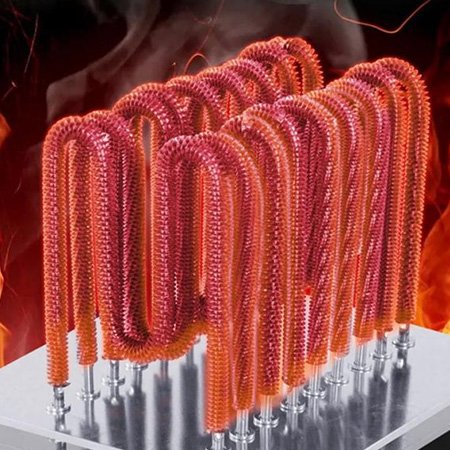

  • Heating Tube
    Heating Tube

    The Misaligned stainless steel Finned heating tube , large heat dissipation area,even heating.

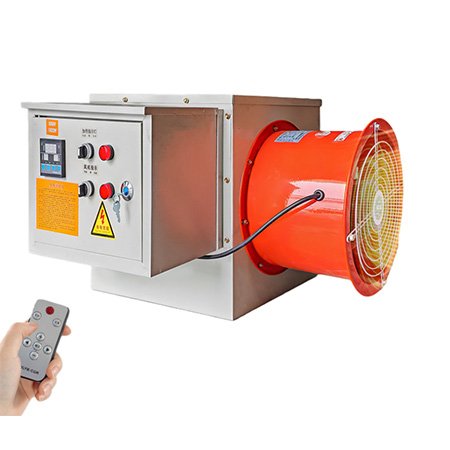

  • Timing Function
    Timing Function

    According your request set up timing function.

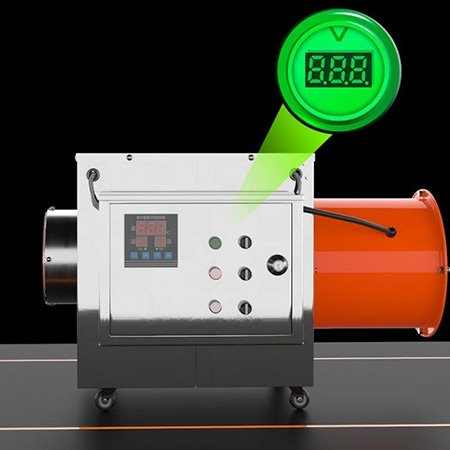

  • Intelligent Digital Display
    Intelligent Digital Display

    Intelligent settings, automatic heating. You can set up the minimum temperature and maximum temperature, when the temperature arrived the maximum temperature the heating tube stop working when the temperature low than the minimum temperature the heating tube start working until arrived the maximum temperature.

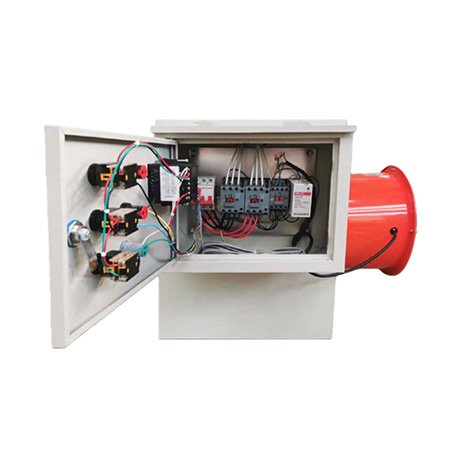

  • Safety Setting
    Safety Setting

    overheating protection, avoid the inside temperature too high when temperature too high automatic power off. Leakage production and open-phase production
