agricultural exhaust fan stainless steel

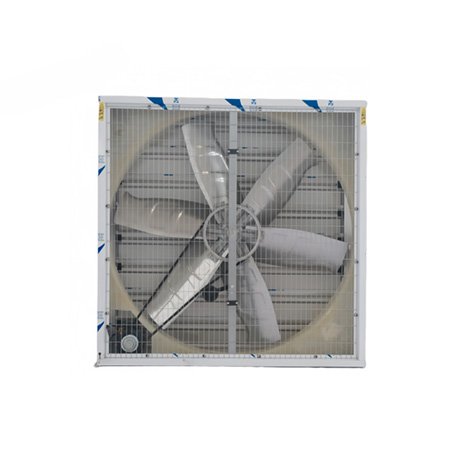

Hammer Type Fan

Type 1380 304SS

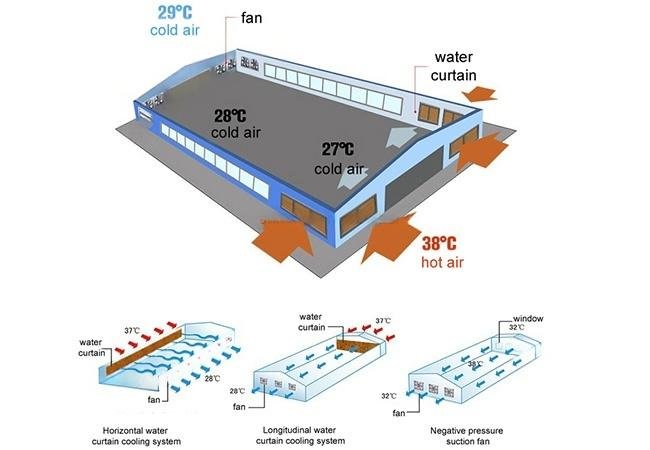

Honglian Exhaust fan is the use of air convection, negative pressure ventilation cooling principle, is a natural inhalation of fresh air from the installation site - the door or window, the indoor hot air quickly forced out of the outdoor, any poor ventilation can be improved.Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

Feature:
1) 304 stainless steel never rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality,utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

Inquiry Now

Product Details
Inquiry Now
Related Products

Product Details

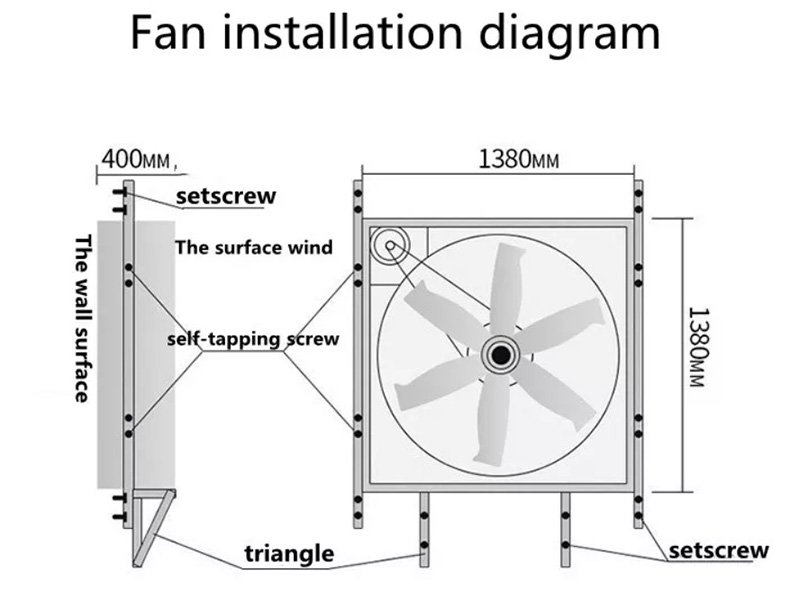

1.Adjust the horizontal and vertical , keeping the fan blade running smoothly.2. After fixing the fan, the remaining gap need to be sealed.3. The Expansion screws and Self tapping screw can be used to fix.

model	Balde Diameter	Voltage	Input Power	motor rotational speed	Air Flow	Noise	Hight	Width	Thickness
	mm	V	kw	rpm	m³/h	db	mm	mm	mm
800	700	380/220	0.37	1400	20000	≤64	800	800	450
1000	900	380/220	0.75	1400	30000	≤64	1000	1000	450
1100	1000	380/220	0.75	1400	33000	≤64	1100	1100	450
1220	1100	380/220	1.1	1400	38000	≤64	1220	1220	450
1380	1270	380/220	1.1	1400	40000	≤64	1380	1380	450
1530	1400	380/220	1.5	1400	49000	≤64	1530	1530	450

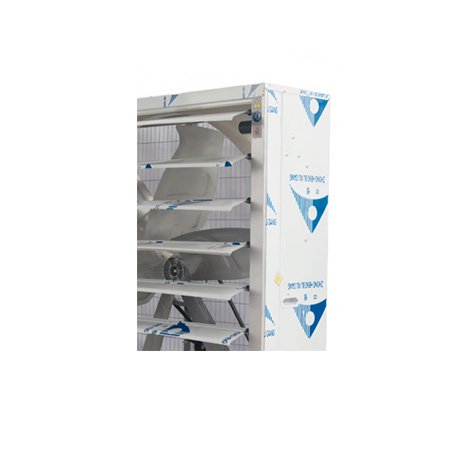

Frame: Thicken 304 Stainless Steel

We has advanced production technology with automatic equipment. professional production line, NC-based professionalequipment.Auto
punching and bending. Highly-accurated. Materials is made by 304 stainless steel
Advantage: High strength,Strong corrosion resistance
Fan Blades

Material:304 stainless steel, thinckness 1.2mm. One times punching formed attractive and durable.
The blade advantage:Have big air flow, no deformation,no fracture, no dust.
Note: Blade material also have galavanized ,430 stainless steel, aluminum alloy for option.

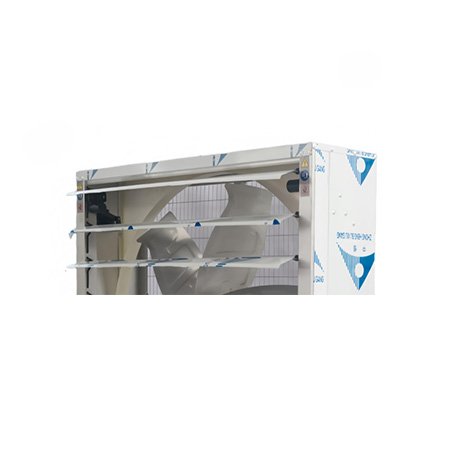

Shutters

Material: hot-dip galvanized sheet, the thickness of zinc is 275g/㎡.The shutters thickness about 0.45mm per pcs, it been stamped in same stylest. It can open and closed automatically.

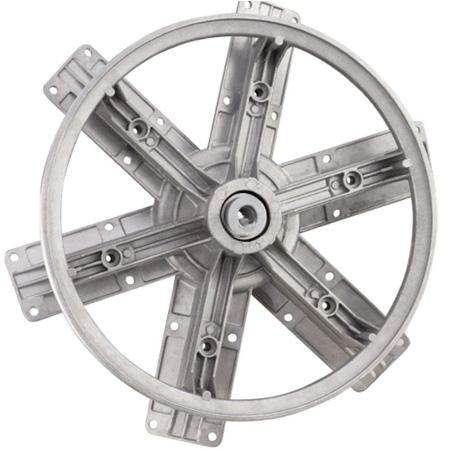

Belt Pulley

The belt pulley are made of High strength aluminum-magnesium alloy by die-casting which reduce the weight of propeller, high
corrosion resistance, stable operation, no shaking.
Heavy Hammer

The heavy hammer material are High strength Nylon PA66 Guide Rod: 304 stainless steel with special material outside, highstrength, no rust.It can keep the shutters open at complete 90 degree and closed completely
Bearing

We are used import good quality famous brand bearing, which have high strength ,low noise ,maintenance free and dustproof and waterproof, have long service life.

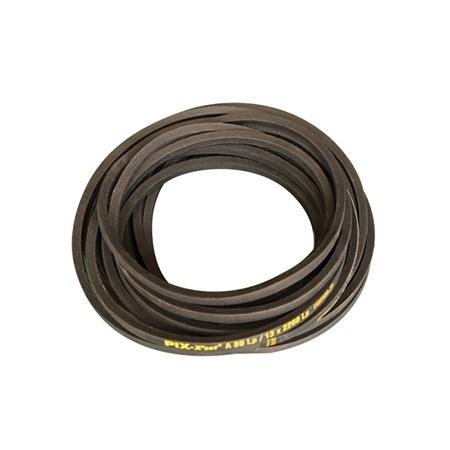

Belt

Sanlux belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair Modified B type belt,so that service life increase 3times than Type A

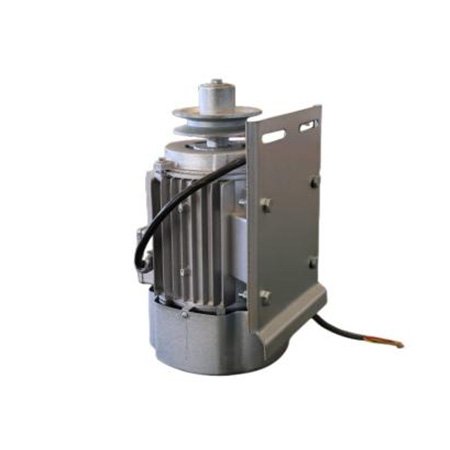

Motor

1. Brand: Chinese famous motor；Siemens motor, ABB motor and WEG motor
2.Motor Protection Grade: IP55
3. Isulation Class: F grade Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack
protection device which would power off when shortage of electricity.

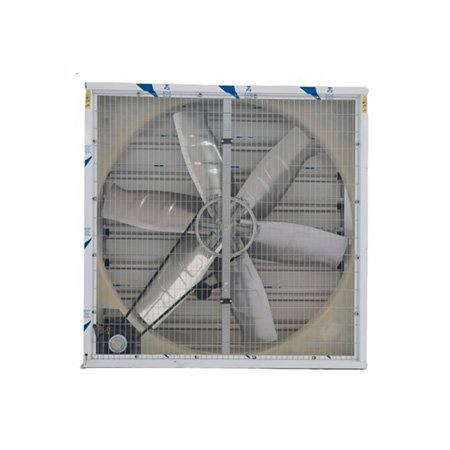

Safety Net

The fan protective safety net is made by hot-dip galvanized wire with electrostatic plastic spraying. Not easy to get rust,beautiful and durable.
