Tpye 800
Push-Pull Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc. Galvanized frame with stainless steel blade mounted wall with big air flow and long service life, very friendly for the environment.
Product Details
Main Features：
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring the fans quality.
3) Complete CNC production line, the accuracy of assembling holes is 100%, quality assured.
4) Wall-Mounting fan , easy installation and maintenance.
5) Belt Drive, Big airflow.
| model | Balde Diameter | Voltage | Input Power | motor rotational speed | Air Flow | Noise | Hight | Width | Thickness |
| mm | V | kw | rpm | m³/h | db | mm | mm | mm | |
| 800 | 700 | 380/220 | 0.37 | 1400 | 20000 | ≤64 | 800 | 800 | 450 |
| 1000 | 900 | 380/220 | 0.75 | 1400 | 30000 | ≤64 | 1000 | 1000 | 450 |
| 1100 | 1000 | 380/220 | 0.75 | 1400 | 33000 | ≤64 | 1100 | 1100 | 450 |
| 1220 | 1100 | 380/220 | 1.1 | 1400 | 38000 | ≤64 | 1220 | 1220 | 450 |
| 1380 | 1270 | 380/220 | 1.1 | 1400 | 40000 | ≤64 | 1380 | 1380 | 450 |
| 1530 | 1400 | 380/220 | 1.5 | 1400 | 49000 | ≤64 | 1530 | 1530 | 450 |
Material:Krupp 430 stainless steel, thinckness 1.2mm. One times punching formed attractive and durable.
The blade advantage:Have big air flow, no deformation,no fracture, no dust.Note: Blade material also have galavanized ,304 stainless steel, aluminum alloy for option.
1. Material: hot-dip galvanized sheet, the thickness of zinc is 275g/㎡.
2. Thickness: 1.5mm in the middle, 0.8mm in others
3.Shutter mount: high-quality nylon. High anti-corrosion performance, flexible opening, long service life, no deformation, no rust, stable operation
The belt pulley are made of High strength aluminum-magnesium alloy by die-casting which reduce the weight of propeller, high
corrosion resistance, stable operation, no shaking.
1.Material: High quality Nylon.
2.Guide Rod:304 stainless steel with special material outside, high strength, no rust.
3.Rivet: 304 stainless steel,wear-resisting, no rust. It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.
Honglian exhaust fans bearing adopt imported double-row bearing which have special waterproof design, high strength, low noise, free maintenance and long service life.
Sanlux belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair Modified B type belt,so that service life increase 3times than Type A

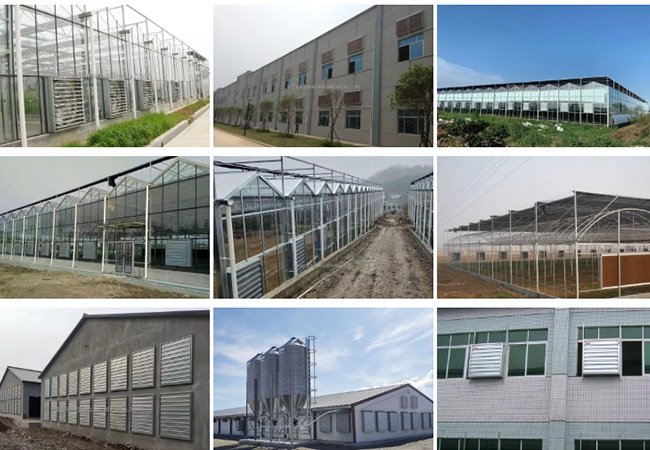

The exhaust fan are widely used in Poultry house, Industrial workshop, Agriculture etc., Anywhere need natural ventilation this fan is the good choice.
