Hammer Type Fan

Type 1380

The frame adopt 275g/㎡ galvanized steel plate, balde are made of 1.2 thinckness stainless steel plate,used one times punch forming technology. The fan's shutter can open and colosed automatically. This fan have high air flow and long service life, it can always make you have fresh air.

Feature:
1. Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2.95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality,utmost cost-effective globally.
3.Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4.Wall-Mounting fan , easy installation and maintenance.
5.Belt Drive, Big airflow.

Inquiry Now

Product Details
Inquiry Now
Related Products

Product Details

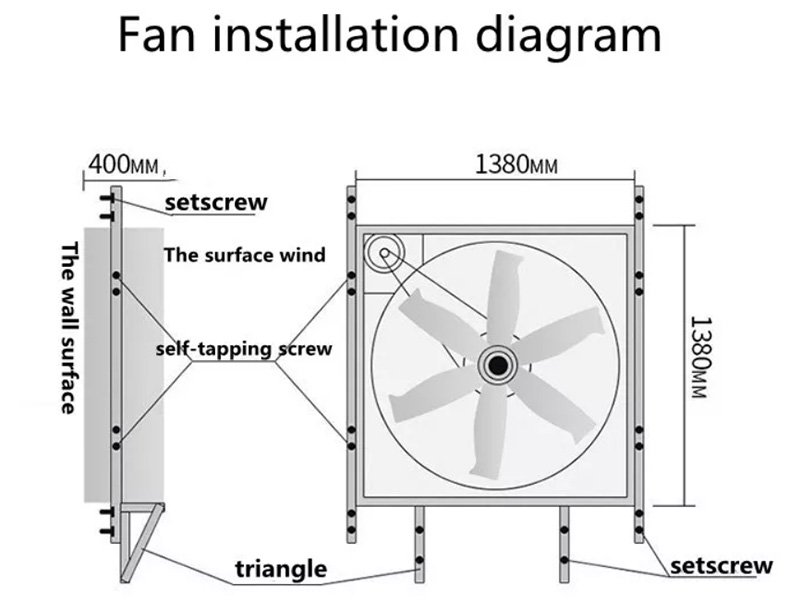

1. Adjust the horizontal and vertical , keeping the fan blade running smoothly.2. After fixing the fan, the remaining gap need to be sealed.3.The Expansion screws and Self tapping screw can be used to fix.

model	Balde Diameter	Voltage	Input Power	blade rotational speed	motor rotational speed	Air Flow	Noise	Hight	Width	Thickness
	mm	V	kw	rpm	rpm	m³/h	db	mm	mm	mm
800	710	380/220	0.37	660	1400	18000	≤70	800	800	400
900	750	380/220	0.55	630	1400	22000	≤65	900	900	400
1000	900	380/220	0.55	610	1400	23000	≤70	1000	1000	400
1100	1000	380/220	0.75	600	1400	32500	≤70	1100	1100	400
1220	1100	380/220	1.1	460	1400	35000	≤70	1220	1220	400
1380	1250	380/220	1.1	458	1400	39000	≤70	1380	1380	400
1530	1400	380/220	1.5	325	1400	47000	≤70	1530	1530	400

Frame

The exhaust fan Materials is made by 275g coating weight galvanized steel plate.
Advantage:High strength,Strong corrosion resistance.

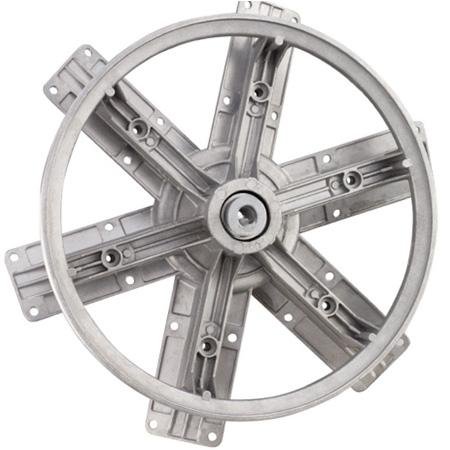

Belt pulley

The belt pulley are made of High strength aluminum-magnesium alloy by die-casting which reduce the weight of propeller, high corrosion resistance.

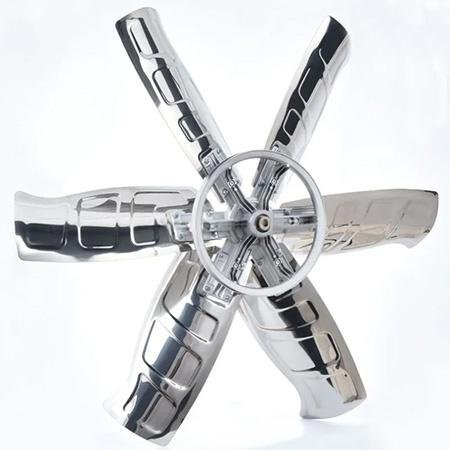

Fan Blades

Material:Krupp 430 stainless steel, thinckness 1.2mm. One times punching formed attractive and durable.Note: Blade material also have galavanized ,304 stainless steel, aluminum alloy for option.

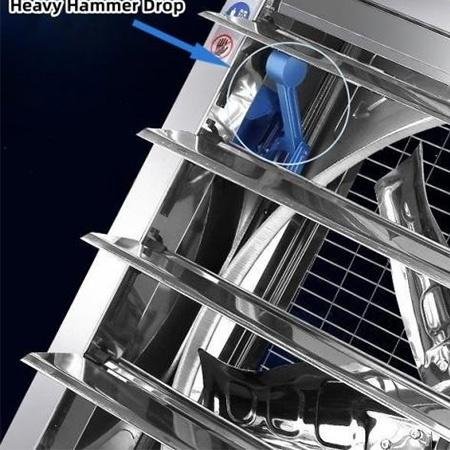

Heavy Hammer

The heavy hammer material are High strength Nylon PA66 Guide Rod: 304 stainless steel with special material outside, highstrength, no rust.It can keep the shutters open at complete 90 degree and closed completely.
Bearing

We are used import good quality famous brand bearing, which have high strength ,low noise ,maintenance free and dustproof and waterproof, have long service life.
Motor

We all used good quality motor ,the common motor are chinese famous motor.Siemens motor, ABB motor and WEG motor by required. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.
Safety Net

The fan protective safety net is made by hot-dip galvanized wire with electrostatic plastic spraying. Not easy to get rust,beautiful and durable.
Shutters

The shutters thickness about 0.45mm per pcs, it been stamped in same stylest. It can open and closed automatically.

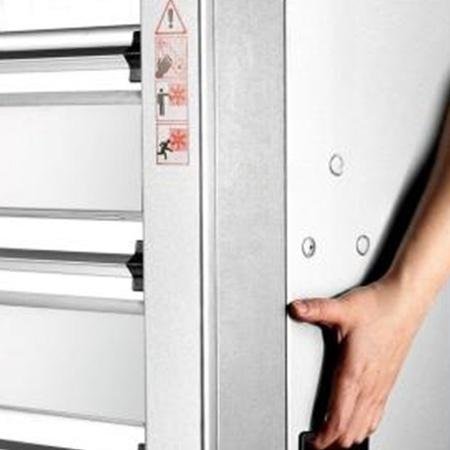

Plastic Handle

In order to facilitate transport, a concave plastic handle is designed on both sides of fan fuselage, it is greatly improve the transportation efficiency. It has beautiful appearance and it is reasonable for design and not easy to damage, cannot hurt hands.

CASE DISPLAY

Our exhaust fan have sale to many of countrys , it have widely used in poultry house, industry workshop and agriculture.They can be used in chicken house, bird house, cow house etc.,greenhouse also need this fan to control temperature.
